Western Standards by Alan Ruiz

For his project “Western Standards S2-48,” artist Alan Ruiz asked us to fabricate a series of panels in MDF similar to the work we did for his project “Against Nature.” As in that project, the CNC router was used to create a series of shallow inserts made from the profile of the steel studs that would be inserted into the pockets. The CNC was then used to cut out the serpentine forms of the panels, allowing them to protrude and withdraw from the wall.

Final assembly and installation were done by the artist. Images of final installation provided by Alan Ruiz.

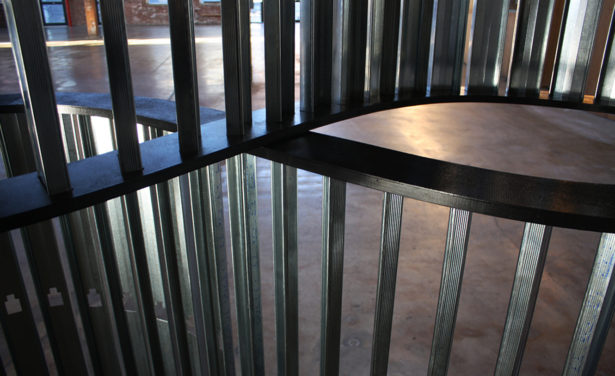

Art Installation with CNC Routed MDF Components

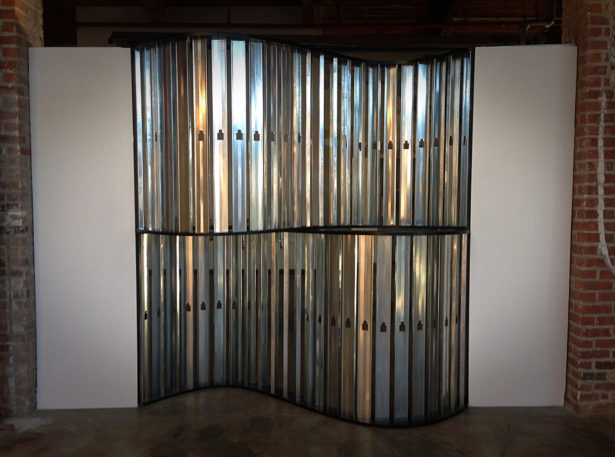

Art Installation with CNC Routed MDF Components

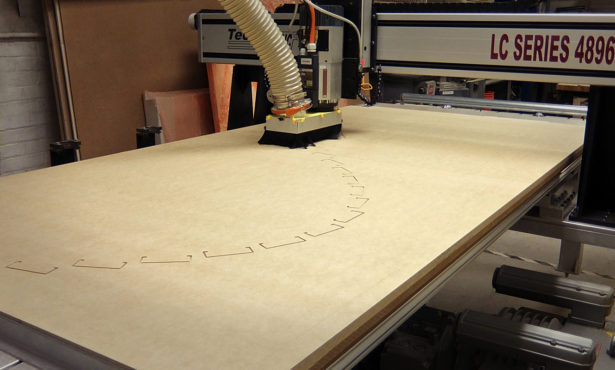

CNC Routing MDF Components

CNC Routing MDF Components

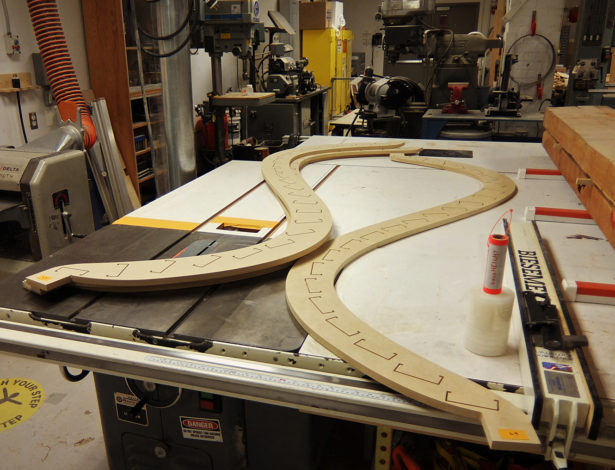

CNC Routed MDF Panels

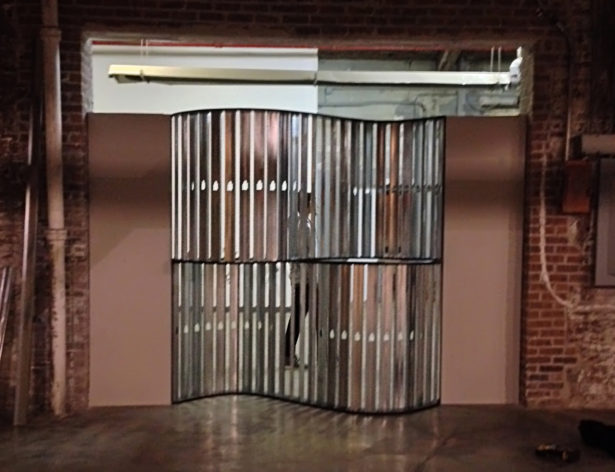

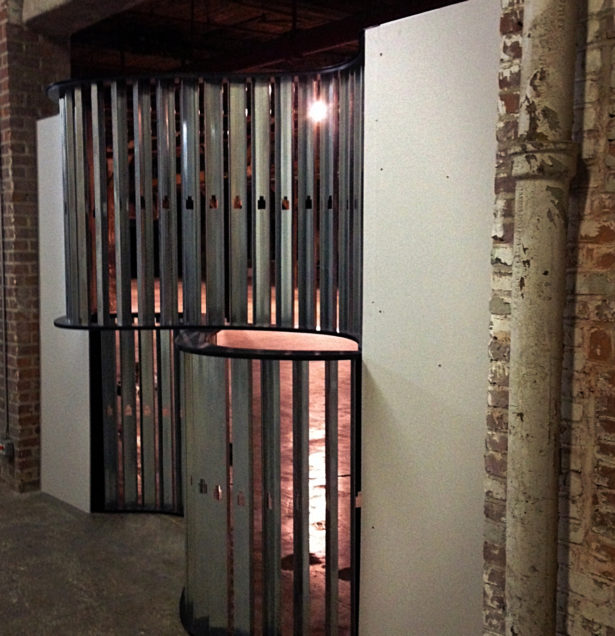

Art Installation with CNC Routed MDF Components
